Slime dryer
Production capacity (t/d): 300-3000
Floor area (㎡): 42*16-60*18
Heat source configuration: suitable for multiple fuels
Environmental protection configuration: supporting the use of multi-stage dust removal equipment, which can reach environmental protection standards
Slime dryer
Applications: Widely used in the drying of materials in industries such as cement, mining, building materials, chemicals, and compound fertilizer production.
Applicable materials: coal slime, raw coal, flotation clean coal, mixed clean coal, petroleum coke, clay, etc.
Product Introduction

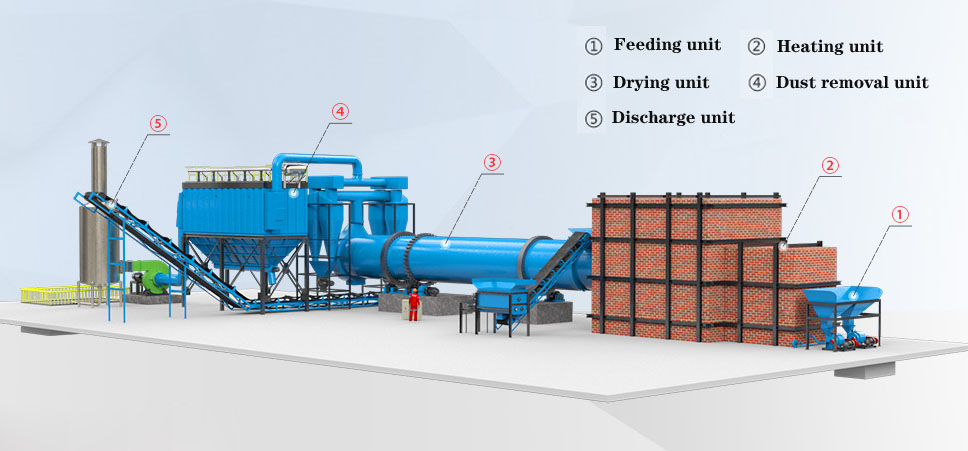

Coal slime has many unfavorable conditions such as high moisture, high viscosity, high water holding capacity and low calorific value. It is difficult to realize industrial utilization. According to the current market situation of coal slime industry and the characteristics of coal slime in various places, the company carries out technical innovation and practice time after time. A new generation of slime drying system has been meticulously created. This set of equipment can be used to dry slime. It can be equipped with various heat sources such as coal slime special hot blast stove, coke oven gas, boiling furnace, chain blast furnace, steam, etc. Multi-stage dust removal, supporting desulfurization equipment, etc. The equipment supports customization. The slime dryer has stable operation, convenient operation and maintenance, and a more affordable price.

Performance characteristics
1. Adjust the energy structure in accordance with the requirements of environmental protection regulations, diversify coal slime dryer hot blast stoves, and flexibly configure coal, gas, biomass pellets and other hot blast stoves. At the same time, make full use of the resources available to customers, such as flue gas waste heat. , As a heat medium to dry slime;
2. The dust removal system adopts multi-stage dust removal equipment that combines dry and wet use, with high dust removal efficiency, low power consumption, long service life, and reducing customer exhaust gas granulation costs;

3. The feeding and discharging device strengthens the cleaning and heat conduction of the dispersed materials, the feeding is evenly clogged, does not stick to the wall, does not block the material, the dry material slime particles are uniform, and the wet and dry particles are uniform;
4. The dryer adopts the "adjustable supporting roller device" to make the supporting roller and the rolling ring have a linear contact, which greatly reduces the wear of the retaining roller, and the cylinder runs smoothly and reliably;
5. Adopting unique large slime delay drying technology to ensure the uniformity of slime drying.
